What do immigration numbers tell us about the Brexit vote?

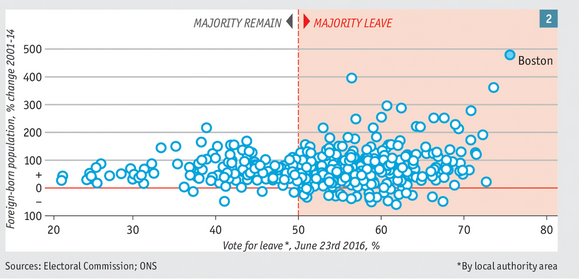

A couple of weeks ago I tweeted a chart from The Economist which plotted the percentage increase in the foreign-born population in UK local authority areas against the number of Leave votes in that area. I also quoted the accompanying article: ‘Where foreign-born populations increased by more than 200%, a Leave vote followed in 94% of cases.’


This generated lots of responses, many of which rightly pointed out the problems with the causality implied in the quote. These included the following:

  • Using the percentage change in foreign-born population is problematic because this will be highly sensitive to the initial size of population.
  • Majority leave votes also occurred in many areas where the number of migrants had fallen.
  • Much of the result is driven by a relatively small number of outliers while the systemic relationship looks to be flat.
  • The number of points where foreign-born populations had increased by more than 200% were small relative to the total sample: around twenty points out of several hundred.

Al these criticisms are valid. With hindsight, the Economist probably shouldn’t have published the chart and article – and I shouldn’t have tweeted it. But the discussion on Twitter got me interested in whether the geographical data can tell us anything interesting about the Leave vote.

I started by trying to reproduce the Economist’s chart. The time period they use for the change in foreign-born population is 2001-2014. This presumably means they used census data for the 2001 numbers and ONS population estimates for 2014. My attempt to reproduce the graph using these datasets is shown below. The data points are colour-coded by geographical region and the size of the data point represents the size of the foreign-born population in 2014 as a percentage of the total. (The chart is slightly different to the one I previously tweeted, which had some data problems.)


Despite the problems described above, the significance of geography in the vote is clear – this is emphasised in the excellent analysis published recently by the Resolution Foundation and by Geoff Tily at the TUC (see also this in the FT and this in the Guadian).

Of the English and Welsh regions, it is clear that the Remain vote was overwhelmingly driven by London (The chart above excludes Scotland and Northern Ireland, both of which voted to Remain). Other areas which have seen substantial growth in foreign-born populations and also voted to Remain are cities such as Oxford, Cambridge, Bristol, Manchester and Liverpool.

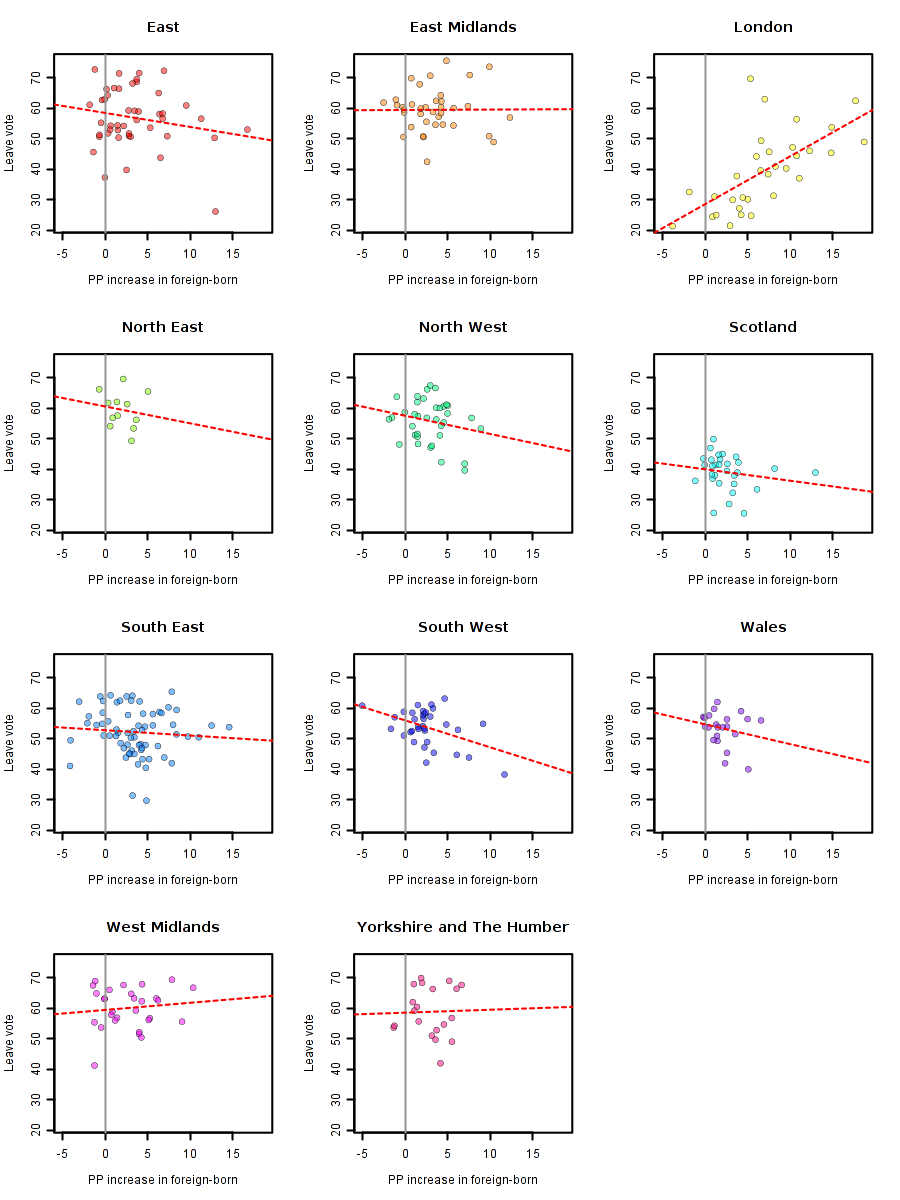

A better way to look at this data is to plot the percentage point change in foreign population instead of the percentage increase. This will prevent small initial foreign-born populations producing large percentage increases. The result is shown below. For this, and rest of the analysis that follows, I’ve used the ONS estimates of the foreign-born population. This reduces the number of years to 2004-2014, but excludes possible errors due to incompatibility between the census data and ONS estimates. It also allows for inclusion of Scottish data (but not data from Northern Ireland). I’ve also flipped the X and Y axes: if we are thinking of the Leave vote as the thing we wish to explain, it makes more sense to follow convention and put it on the Y axis.


There is no statistically significant relationship between the two variables in the chart above. The divergence between London, Scotland and the rest of the UK is clear, however. There also looks to be a positive relationship between the increase in foreign-born population and the Leave vote within London. This can be seen more clearly if the regions are plotted separately.


The only region in which there is statistically significant relationship in a simple regression between the two variables is London. A one percent increase in the foreign-born population is associated with a 1.5 percent increase in the Leave vote (with an R-squared of about 0.4). The chart below shows the London data in isolation.


The net inflow of migrants appears to have been greatest in the outer boroughs of London – and these regions also returned highest Leave votes. There are a number of possible explanations for this. One is that new migrants go to where housing is affordable – which means the outer regions of London. These are also the areas where incomes are likely to be lower. There is some evidence for this, as shown in the chart below: there is a negative relationship – albeit a weak one – between the increase in the foreign-born population and the median wage in the area.


Returning to the UK as a whole (excluding Northern Ireland), the Resolution foundation finds that there is a statistically significant relationship between the percentage point increase in foreign-born population and Leave vote when the size of the foreign-born population is controlled for. This is confirmed in the following simple regression, where FB.PP.Incr is the percentage point increase in the foreign-born population and FB.Pop.Pct is the foreign-born population as a percent of the total.

 Estimate Std. Error t value Pr(>|t|)
(Intercept) 57.19258 0.71282 80.235 < 2e-16 ***
FB.PP.Incr 0.90665 0.17060 5.314 1.87e-07 ***
FB.Pop.Pct -0.64344 0.05984 -10.752 < 2e-16 ***
Signif. codes: 0 ~***~ 0.001 ~**~ 0.01 ~*~ 0.05 ~.~ 0.1 ~ ~ 1

Residual standard error: 9.002 on 363 degrees of freedom
Multiple R-squared: 0.2475, Adjusted R-squared: 0.2433
F-statistic: 59.69 on 2 and 363 DF, p-value: < 2.2e-16

It is clear that controlling for the foreign-born population is, in large part, controlling for London. This is illustrated in the chart below which shows the foreign-born population as a percentage of the total for each local authority in 2014, grouped by broad geographical region. The boxplots in the background show the mean and interquartile ranges of foreign-born population share by region. The size of the data points represents the size of the electorate in that local authority.


This highlights a problem with the analysis so far – and for others doing regional analysis on the basis of local authority data. By taking each region as a single data point, statistical analysis misses the significance of differences in the size of electorates. This is important because it means, for example, that the Leave vote of 57% from Richmondshire, North Yorksire with around 27,000 votes cast is given the same weight as the Leave vote of 57% in County Durham, with around 270,000 votes cast.

This can be overcome by constructing an index of referendum voting weighted by the size of the electorate in each area. This index is constructed so that it is equal to zero where the Leave vote was 50%, negative for areas voting Remain, and positive for areas voting Leave. The magnitude of the index represents the strength of the contribution to the overall result. Plotting this index against the percentage point change in the foreign population produces the following chart. Data point sizes represent the number of votes in each area.


Again, there is no statistically significant relationship between the two variables, but as with the unweighted data, when controlling for the foreign population,  a positive relationship does exist between the increase in foreign-born and Leave votes.

The outliers are different to those seen in the unweighted voting data, however – particularly in areas with a strong leave vote. This can be seen more clearly by removing the two areas with the strongest Remain votes: London and Scotland. The data for the rest of England and Wales only are shown below.08-chart-leave-weighted-nss

There is a clear split between the strong Leave outliers and the strong Remain outliers. The latter are Bristol, Brighton, Manchester, Liverpool and Cardiff. When weighted by size of vote, The previous outliers for Leave – Eastern areas such as Boston and South Holland – are replaced by towns and cities in the West Midlands and Yorkshire and with the counties of Cornwall and County Durham.

Overall, while there is a relationship between net migration inflows and Leave votes – at least when controlling for the size of the foreign-born population – it is only a small part of the story. The most compelling discussions I’ve seen of the underlying causes of the Leave vote are those which emphasise the rise in precarity and the loss of social cohesion and identity in the lives of working people, such as John Lanchester’s piece in the London Review of Books (despite the errors), the excellent follow-up piece by blogger Flip-Chart Rick, and this piece by Tony Hockley. As Geoff Tily argues, the geographical distribution of votes strongly suggests economic dissatisfaction was a key driver of the Leave vote, which pitted ‘cosmopolitan cities’ against the rest of the country. This is compatible with the pattern shown above, where the strongest Leave votes are concentrated in ex-industrial areas and the strongest Remain votes in the ‘cosmopolitan cities’.

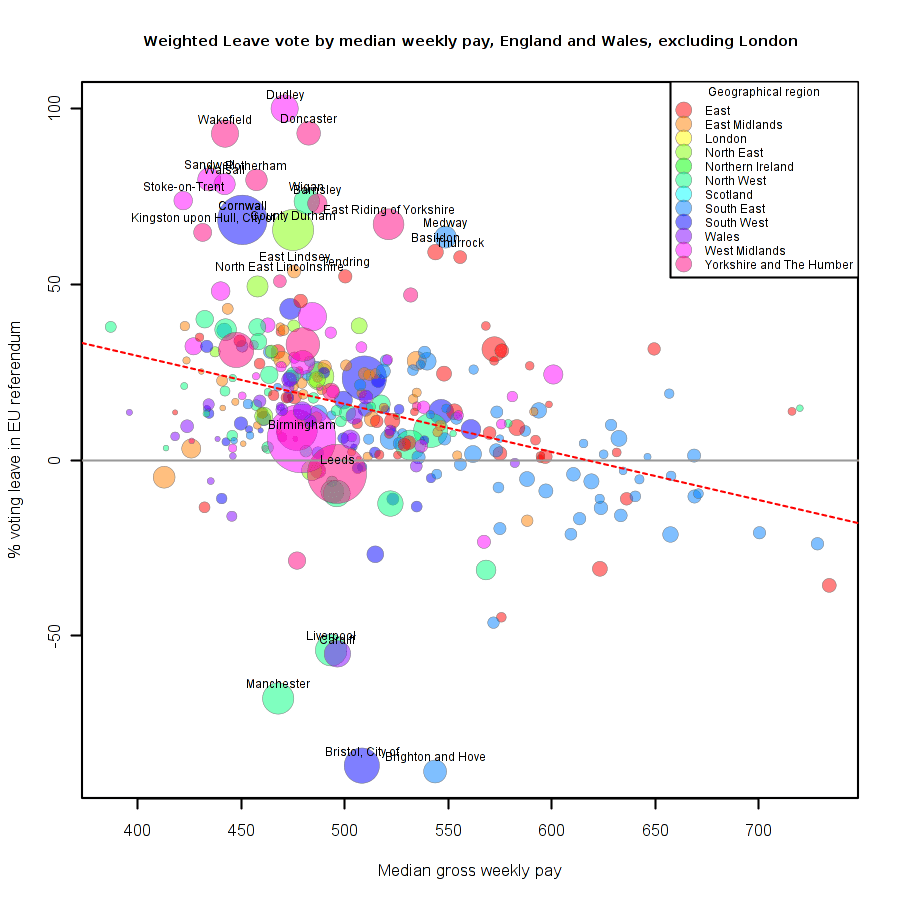

The chart below shows the weighted Leave vote plotted against median gross weekly pay.09-wages

Scotland as a whole is once again the outlier, while much of the relationship appears to be driven by London, where wages are higher and the majority voted Remain. Removing these two regions gives the following graph.


Aside from the outlier Remain cities, there is a negative relationship between median pay and weighted Leave votes. The statistical strength of this relationship is relatively weak, however.

Putting all the variables together produces the following regression result:

 Estimate Std. Error t value Pr(>|t|)
(Intercept) 80.98722 12.18838 6.645 1.12e-10 ***
FB.PP.Incr 2.46269 0.57072 4.315 2.06e-05 ***
FB.Pop.Pct -1.61904 0.21781 -7.433 7.72e-13 ***
Median.Wage -0.12539 0.02404 -5.216 3.08e-07 ***
Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 29 on 362 degrees of freedom
Multiple R-squared: 0.2977, Adjusted R-squared: 0.2919
F-statistic: 51.15 on 3 and 362 DF, p-value: < 2.2e-16

Leave votes are negatively associated with the size of the foreign-born population and with the median wage, and positively associated with increases in the foreign-born. The R^2 value of 0.3 suggests this model has some predictive power, but could certainly be improved.

 Estimate Std. Error t value Pr(>|t|)
(Intercept) 107.61139 13.30665 8.087 9.97e-15 ***
FB.PP.Incr 2.92817 0.49930 5.865 1.04e-08 ***
FB.Pop.Pct -2.34394 0.27140 -8.636 < 2e-16 ***
Median.Wage -0.14360 0.02313 -6.210 1.50e-09 ***
RegionEast Midlands -9.07601 5.44978 -1.665 0.09672 .
RegionLondon 9.44698 8.34896 1.132 0.25861
RegionNorth East -4.11112 8.02869 -0.512 0.60893
RegionNorth West -16.69448 5.51048 -3.030 0.00263 **
RegionScotland -61.65217 5.76312 -10.698 < 2e-16 ***
RegionSouth East -4.60717 4.64123 -0.993 0.32156
RegionSouth West -18.73821 5.55187 -3.375 0.00082 ***
RegionWales -27.65673 6.53577 -4.232 2.96e-05 ***
RegionWest Midlands 4.06613 5.83469 0.697 0.48633
RegionYorkshire and The Humber 4.72398 6.61676 0.714 0.47574
Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 24 on 352 degrees of freedom
Multiple R-squared: 0.5323, Adjusted R-squared: 0.515
F-statistic: 30.82 on 13 and 352 DF, p-value: < 2.2e-16

Adding regional dummy variables improves the fit of the model substantially – increasing the value of R^2 to around 0.5. This suggests – unsurprisingly – there are differences between regions which are not captured in the three variables included here.

Immigration brings both benefits and costs – but no reason to leave

If UK voters decide to leave the European Union, it will be for one reason above all. From the outset, nationalism bordering on xenophobia has been a defining feature of the Leave campaign. Having lost the argument on broader economic issues, it looks likely the Leave camp will fight the final month of the campaign on immigration. The scapegoating of migrants for the UK’s economic problems will become increasingly unrestrained as the referendum date approaches.

It is not difficult to understand why the Leave camp has chosen to focus on immigration: it is the issue which matters most to those likely to vote for Brexit. Fear that immigration undermines living standards and increases precarity is strong. The anti-European political right has harnessed this fear in a cynical attempt to exploit the insecurity of working class voters in the era of globalisation.

It is countered by Remain campaign statements emphasising that immigration is good for the economy: there are fiscal benefits, immigrants bring much-needed skills and –  because migrants are mostly of working age – immigration offsets the effects of an ageing population.

These claims are well-founded. But immigration has both positive and negative effects. Like other facets of globalisation, the impact of immigration is felt unevenly.

At its simplest, the pro-immigration argument is that migrants find work without displacing native workers, thus increasing the size of the economy. This argument is a valid way to dispel the ‘lump of labour’ fallacy and counter naive arguments that immigration automatically costs jobs. But it does not prove immigration is necessarily positive: an increasing population also puts pressure on housing, the environment and public services.

A stronger position is taken by those who claim that immigration increases GDP per capita – migrants raise labour productivity. It is difficult to interpret the evidence on this, since productivity is simultaneously determined by many factors. But even those who argue that the evidence supports this position find the effect to be very weak. Positive effects on productivity are likely to due to skilled migrants being hired as a result of the UK ‘skills gap’.

But not all – or even most – immigrants are in highly skilled work. Despite being well-educated, many come looking for whatever work they can find and are willing to work for low wages. A third of EU nationals in the UK are employed in ‘elementary and processing occupations’. What is the effect of an increasing pool of cheap labour looking for low-skilled work? The evidence suggests there is little effect on employment rates over the long run. There may, however, be displacement effects in the short run. In particular, when the labour market is slack – during recessions – the job prospects of low-paid and unskilled workers may be damaged by migrant inflows.

The evidence on wages likewise suggests effects are small, but again there appears to be some impact of immigration on the wages of low-skilled workers. There is also evidence of labour market segmentation: migrants are disproportionately represented in the seasonal, temporary and ‘flexible’ (i.e. precarious) workforce.

Further, much of the evidence on employment and wages comes from a period of high growth and strong economic performance. This may not be a reliable guide to the future. It is possible that more significant negative effects could emerge, particularly if the economy remains weak.

Economists on the Remain side downplay the negative effects of immigration, presenting it as unequivocally good for the UK economy. It is undoubtedly difficult to present a nuanced argument in the short space available for a media sound-bite. But it is possible that the line taken by the Remain camp plays into the hands of the Leave campaign.

Aside from the skills they bring – around a quarter of NHS doctors are foreign nationals – the main benefit of immigration is the effect on demographics. Without inward migration, the UK working age population would have already peaked. But ageing cannot be postponed indefinitely.

Rapid population growth leads to pressures on public services, housing and infrastructure unless there are on-going programmes of investment, upgrading of infrastructure and house building. Careful planning is required to ensure that public services are available before migrants arrive – otherwise there will be a period while services are under pressure before more capacity is added.

Long-run investment in public services, infrastructure and housing is exactly what the UK has not been doing. Instead, we are more than five years into an unnecessary austerity programme. Our infrastructure is ageing and suffers from lack of capacity. Wages have yet to recover to pre-crisis levels. Government services continue to be cut, even as the population increases.

Those who face pressure on their standard of life from weak wage growth and rising housing costs will understandably find it difficult to disentangle the causes of their problems. For many, immigration will not be the reason – but it will be more visible and tangible than austerity, lack of aggregate demand and weak labour bargaining power.

The root of the problem is that the UK is increasingly a low-wage, low-skill economy. There is a shortage of affordable housing and public services are facing the deepest cuts in decades. None of these problems would be solved by the reorganised Conservative government that would take power immediately following a vote to leave the EU. Instead, it is clear that much of the Leave camp favours a Thatcherite programme of further cuts and deregulation.

Campaigners for Leave will continue to use immigration as a way to take Britain out of the EU. They are wrong. This is cynical exploitation of genuine problems and fears faced by many low-wage workers.  Immigration is not a reason to leave the European Union.

But the status quo of high immigration alongside cuts to public services and wage stagnation cannot continue indefinitely. If high levels of migration are to continue, as looks likely, the UK government must consider how to accommodate the rapidly increasing population. Government services must keep pace with population increases. Pressures will be particularly acute in London and the South East.

We must also be more open in admitting that immigration has both costs and benefits – it does not affect the population evenly. Liberal commentators should acknowledge the concerns of those facing the negative effects of immigration. In doing so, they may lessen the chances that voters fall for the false promises of the Leave campaign.


This article is part of the EREP report on the EU referendum ‘Remain for Change‘. The authors of the report are:

John Weeks, Professor Emeritus of Development Economics at SOAS
Ann Pettifor, Director of Policy Research in Macroeconomics
Özlem Onaran, Professor of economics, Director of Greenwich Political Economy Research Centre
Jo Michell, Senior Lecturer in economics, University of the West of England
Howard Reed, Director of Landman Economics.
Andrew Simms, co-founder New Weather Institute, fellow of the New Economics Foundation.
John Grahl, Professor of European Integration, Middlesex University.
Engelbert Stockhammer, Professor, School of Economics, Politics and History, Kingston University
Giovanni Cozzi, Senior Lecturer in economics, Greenwich Political Economy Research Centre
Jeremy Smith, Co-director of Policy Research in Macroeconomics, convenor of EREP
